| Nama merek: | VIKSTARS |
| Nomor Model: | VS-SSA-F |
| MOQ: | 20pcs |
| harga: | dapat dinegosiasikan |
| Ketentuan Pembayaran: | T/T |

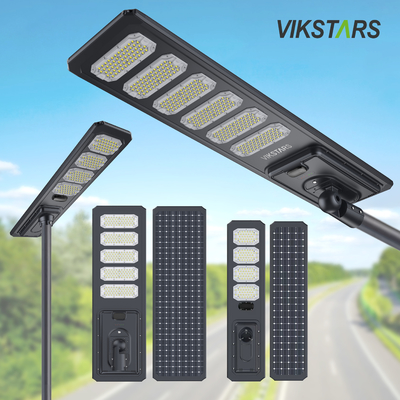

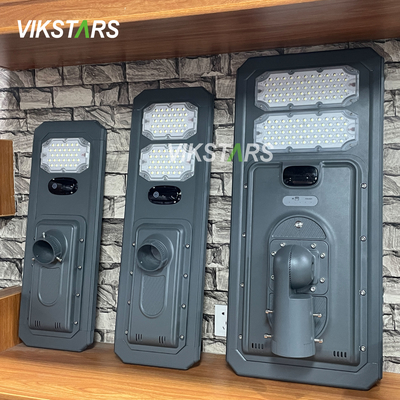

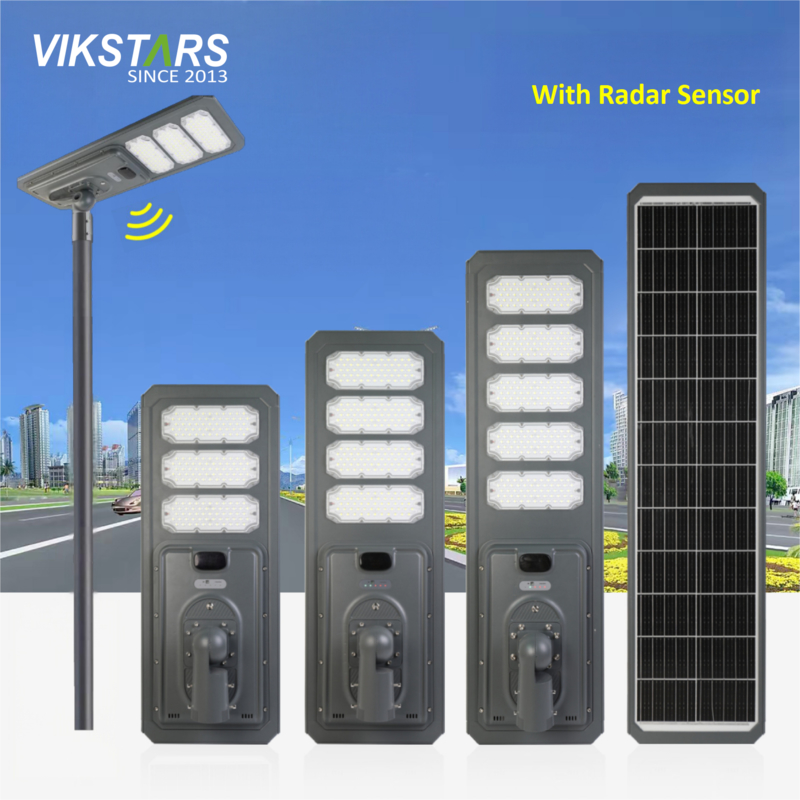

Lampu Jalan Tenaga Surya Aluminium All In One 100W 200W 300W 400W 500W Untuk Grosir
| LAMPU NAMA | LAMPU JALAN TENAGA SURYA PROFIL ALUMINIUM(Badan Sempit) | ||||
| MODEL NO. | VS-SSA-F10 | VS-SSA-F20 | VS-SSA-F30 | VS-SSA-F40 | VS-SSA-F50 |
| DAYA | 100W | 200W | 300W | 400W | 500W |
| BATERAI |
3.2V 12AH Lithium |
3.2V 16AH Lithium |
3.2V 20AH Lithium |
3.2V 25AH Lithium |
3.2V 30AH Lithium |
| PANEL SURYA | Mono 5V 20W | Mono 5V 24W | Mono 5V 27W | Mono 5V 32W | Mono 5V 37W |
| LUMEN | 1294LM | 2184lm | 2597lm | 2855lm | 3312lm |
| JUMLAH LED | SMD5054 *32pcs | SMD5054 *64pcs | SMD5054 *96pcs | SMD5054 *128pcs | SMD5054 *160pcs |
| SUDUT SINAR | 120° | ||||
| CCT | Putih Dingin | ||||
| C.R.I. | 70-80Ra | ||||
| WAKTU PENGISIAN | 4-6 jam | ||||
| JAM TAHAN | 16-18 jam / 3-5 Hari Hujan | ||||
| TINGGI PEMASANGAN | 3-4m | 4-5m | 5-6m | 6-7m | 7-8m |
| AREA PENCAHAYAAN | 100㎡ | 200㎡ | 300㎡ | 400㎡ | 500㎡ |
| MODE KERJA | Sensor Cahaya Cerdas + Induksi Radar + Remote Control (Mendukung Kustomisasi) | ||||
| CARA PEMASANGAN | Pemasangan Tiang | ||||
| BAHAN | Pendingin Panas Profil Aluminium + Lensa PC / Abu-abu | ||||
| UKURAN LAMPU | 662*240*115mm | 750*240*115mm | 900*240*115mm | 1000*240*115mm | 1152*240*115mm |
| UKURAN PANEL | 600*215mm | 690*215mm | 840*215mm | 940*215mm | 1090*215mm |
| PENGEMASAN | Pengemasan Karton Netral Ekspor / Pengemasan Merek VIKSTARS / Pengemasan Kustomisasi | ||||
| GARANSI | 2 tahun | ||||
| LAMPU NAMA | LAMPU JALAN TENAGA SURYA PROFIL ALUMINIUM(Badan Lebar) | ||||
| MODEL NO. | VS-SSA-F20 | VS-SSA-F30 | VS-SSA-F40 | VS-SSA-F50 | VS-SSA-F60 |
| DAYA | 200W | 300W | 400W | 500W | 600W |
| BATERAI |
3.2V 30AH Lithium |
3.2V 40AH Lithium |
3.2V 50AH Lithium |
3.2V 60AH Lithium |
3.2V 70AH Lithium |
| PANEL SURYA | Mono 5V 45W | Mono 5V 53W | Mono 5V 65W | Mono 5V 77W | Mono 5V 90W |
| LUMEN | 3341LM | 4109lm | 5151lm | 5237lm | 5586lm |
| JUMLAH LED | SMD5054 *32pcs | SMD5054 *64pcs | SMD5054 *96pcs | SMD5054 *128pcs | SMD5054 *160pcs |
| SUDUT SINAR | 120° | ||||
| CCT | Putih Dingin | ||||
| C.R.I. | 70-80Ra | ||||
| WAKTU PENGISIAN | 4-6 jam | ||||
| JAM TAHAN | 16-18 jam / 3-5 Hari Hujan | ||||
| TINGGI PEMASANGAN | 4-5m | 5-6m | 6-7m | 7-8m | 9-10m |
| AREA PENCAHAYAAN | 200㎡ | 300㎡ | 400㎡ | 500㎡ | 600㎡ |
| MODE KERJA | Sensor Cahaya Cerdas + Induksi Radar + Remote Control (Mendukung Kustomisasi) | ||||
| CARA PEMASANGAN | Pemasangan Tiang | ||||
| BAHAN | Pendingin Panas Profil Aluminium + Lensa PC / Abu-abu | ||||
| UKURAN LAMPU | 804*357*84mm | 955*357*84mm | 1012*357*84mm | 1305*357*84mm | 1515*357*84mm |
| UKURAN PANEL | 750*350mm | 900*215mm | 1050*215mm | 1250*215mm | 1405*215mm |
| PENGEMASAN | Pengemasan Karton Netral Ekspor / Pengemasan Merek VIKSTARS / Pengemasan Kustomisasi | ||||
| GARANSI | 2 tahun | ||||
|
| Nama merek: | VIKSTARS |
| Nomor Model: | VS-SSA-F |
| MOQ: | 20pcs |
| harga: | dapat dinegosiasikan |
| Ketentuan Pembayaran: | T/T |
Lampu Jalan Tenaga Surya Aluminium All In One 100W 200W 300W 400W 500W Untuk Grosir
| LAMPU NAMA | LAMPU JALAN TENAGA SURYA PROFIL ALUMINIUM(Badan Sempit) | ||||
| MODEL NO. | VS-SSA-F10 | VS-SSA-F20 | VS-SSA-F30 | VS-SSA-F40 | VS-SSA-F50 |
| DAYA | 100W | 200W | 300W | 400W | 500W |
| BATERAI |
3.2V 12AH Lithium |
3.2V 16AH Lithium |
3.2V 20AH Lithium |
3.2V 25AH Lithium |
3.2V 30AH Lithium |
| PANEL SURYA | Mono 5V 20W | Mono 5V 24W | Mono 5V 27W | Mono 5V 32W | Mono 5V 37W |
| LUMEN | 1294LM | 2184lm | 2597lm | 2855lm | 3312lm |
| JUMLAH LED | SMD5054 *32pcs | SMD5054 *64pcs | SMD5054 *96pcs | SMD5054 *128pcs | SMD5054 *160pcs |
| SUDUT SINAR | 120° | ||||
| CCT | Putih Dingin | ||||
| C.R.I. | 70-80Ra | ||||
| WAKTU PENGISIAN | 4-6 jam | ||||
| JAM TAHAN | 16-18 jam / 3-5 Hari Hujan | ||||
| TINGGI PEMASANGAN | 3-4m | 4-5m | 5-6m | 6-7m | 7-8m |
| AREA PENCAHAYAAN | 100㎡ | 200㎡ | 300㎡ | 400㎡ | 500㎡ |
| MODE KERJA | Sensor Cahaya Cerdas + Induksi Radar + Remote Control (Mendukung Kustomisasi) | ||||
| CARA PEMASANGAN | Pemasangan Tiang | ||||
| BAHAN | Pendingin Panas Profil Aluminium + Lensa PC / Abu-abu | ||||
| UKURAN LAMPU | 662*240*115mm | 750*240*115mm | 900*240*115mm | 1000*240*115mm | 1152*240*115mm |
| UKURAN PANEL | 600*215mm | 690*215mm | 840*215mm | 940*215mm | 1090*215mm |
| PENGEMASAN | Pengemasan Karton Netral Ekspor / Pengemasan Merek VIKSTARS / Pengemasan Kustomisasi | ||||
| GARANSI | 2 tahun | ||||
| LAMPU NAMA | LAMPU JALAN TENAGA SURYA PROFIL ALUMINIUM(Badan Lebar) | ||||
| MODEL NO. | VS-SSA-F20 | VS-SSA-F30 | VS-SSA-F40 | VS-SSA-F50 | VS-SSA-F60 |
| DAYA | 200W | 300W | 400W | 500W | 600W |
| BATERAI |
3.2V 30AH Lithium |
3.2V 40AH Lithium |
3.2V 50AH Lithium |
3.2V 60AH Lithium |
3.2V 70AH Lithium |
| PANEL SURYA | Mono 5V 45W | Mono 5V 53W | Mono 5V 65W | Mono 5V 77W | Mono 5V 90W |
| LUMEN | 3341LM | 4109lm | 5151lm | 5237lm | 5586lm |
| JUMLAH LED | SMD5054 *32pcs | SMD5054 *64pcs | SMD5054 *96pcs | SMD5054 *128pcs | SMD5054 *160pcs |
| SUDUT SINAR | 120° | ||||
| CCT | Putih Dingin | ||||
| C.R.I. | 70-80Ra | ||||
| WAKTU PENGISIAN | 4-6 jam | ||||
| JAM TAHAN | 16-18 jam / 3-5 Hari Hujan | ||||
| TINGGI PEMASANGAN | 4-5m | 5-6m | 6-7m | 7-8m | 9-10m |
| AREA PENCAHAYAAN | 200㎡ | 300㎡ | 400㎡ | 500㎡ | 600㎡ |
| MODE KERJA | Sensor Cahaya Cerdas + Induksi Radar + Remote Control (Mendukung Kustomisasi) | ||||
| CARA PEMASANGAN | Pemasangan Tiang | ||||
| BAHAN | Pendingin Panas Profil Aluminium + Lensa PC / Abu-abu | ||||
| UKURAN LAMPU | 804*357*84mm | 955*357*84mm | 1012*357*84mm | 1305*357*84mm | 1515*357*84mm |
| UKURAN PANEL | 750*350mm | 900*215mm | 1050*215mm | 1250*215mm | 1405*215mm |
| PENGEMASAN | Pengemasan Karton Netral Ekspor / Pengemasan Merek VIKSTARS / Pengemasan Kustomisasi | ||||
| GARANSI | 2 tahun | ||||
