| Nama merek: | VIKSTARS |
| Nomor Model: | VS-LH-D |
| MOQ: | 20 pcs |
| Rincian kemasan: | VS-LH-D50, Ukuran Lampu: 89.2*32*16.4cm, QTY/CTN: 1pc/ctn, UKURAN CTN: 109*36.5*11.5cm |
| Ketentuan Pembayaran: | T/T, Western Union |
|
LAMP NAME
|

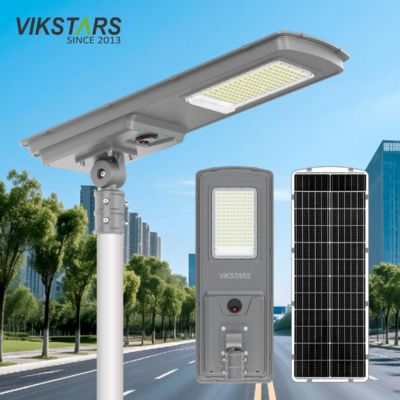

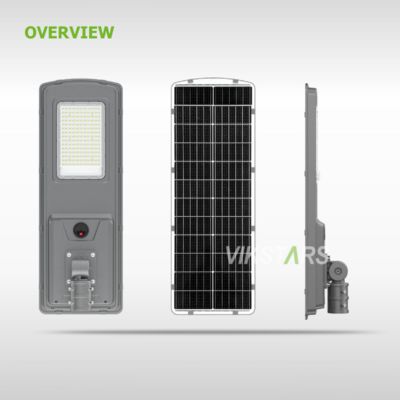

All IN ONE SOLAR STREET LIGHT
|
||
|---|---|---|---|
| MODEL NO. |
VS-LH-D30
|
VS-LH-D40 | VS-LH-D50 |
| POWER | 300W | 400W |
500W
|
| BATTERY | 3.2V 30AH |
3.2V 40AH
|
3.2V 50AH |
| SOLAR PANEL | Mono 5V 30W |
Mono 5V 40W
|
Mono 5V 50W |
| LUMEN | 4500lm | 6000lm | 7500lm |
| LED QUANTITY | 5054*60pcs | 5054*100pcs | 5054*150pcs |
| BEAM ANGLE |
70*140°
|
||
| CCT |
Default: Cold White
|
||
| C.R.I. | >70Ra | ||
| CHARGE TIME |
4-6 hours
|
||
| LASTING TIME |
3-5 rainy days
|
||
| INSTALL HEIGHT |
3-4m
|
4-5m | 5-6m |
| LIGHTING AREA | 20-30㎡ | 30-40㎡ |
40-50㎡
|
| WORKING MODE |
Light Sensor + Motion Sensor / Light Sensor + Time Control
( Supports two modes at the same time, switch via remote control )
|
||
|
INSTALL WAY
|
Horizontal Install / Vertical Install
|
||
| WATERPROOF | IP66 | ||
|
MATERIAL
|
Galvanized Steel Heat Sink + PC Lens / Sand Grey | ||
| LAMP SIZE |
618*300*160mm
|
798*300*164mm | 892*320*164mm |
| SOLAR PANEL SIZE | 296*614mm | 296*794mm | 316*888mm |
| PACKING |
1pc/ctn
( Individual packaging, not include lamp pole, need to buy additionally )
|
||
| WARRANTY |
5 years
|
||
WORKING MODE
|
Straight Arm Install Horizontal Installation |
Adjustable Arm Install Horizontal / Vertical Installation |
INSTALL HEIGHT
REAL PHOTOs
| Power | Carton Size | Qty/ctn | G.W. | Packing |
| 300W | 810*345*115mm |
1pc/ctn
|
Export Neutral Carton
/ VIKSTARS Brand
/ Customizing Packing |
|
| 400W | 990*345*115mm | |||
| 500W | 1090*365*115mm |
|
|
